Non-maintained emergency lights are normally suitable for workplaces that are usually lit when occupied. Non-maintained light fittings are powered by a battery that is charged from mains power. When there is power failure, the battery will discharge, and then non-maintained emergency lighting will light on for a duration of 3 hours or more, and.

Emergency Exit Sign Wiring Diagram

Installation for Ceiling- or End-Mounted Lights: Remove the wire pass cutouts from the top or side of the unit. Attach the canopy to the power pack or the sign itself using provided screws and hardware. Use the two longest screws in the outer holes of the hanging plate to attach the unit.

AUTOMATIC EMERGENCY LIGHT WIRING CONNECTION YouTube

Non-Maintained Mode definition. LED Luminaire is not illuminated during Normal Mains Supply conditions, only at loss of Mains Supply Power Failure LED comes on under Battery Backup Supply. For Full Battery Charging Conditions, the Emergency Luminaire must have Continuous Charging of Battery Pack for at least 16 Hours to allow sufficient Battery.

Difference Between Maintained And NonMaintained Emergency Lighting by Jessica Max Issuu

2. Centrally supplied emergency lighting luminaire means a luminaire for maintained or non-maintained operation which is energized from a central emergency power supply system that is not contained within the luminaire. B. Specification 3. The emergency lighting systems shall comply with BS 5266-1: 2016 and BS EN 1838: 2013

Maintained &NonMaintained Two Spoting Emergency 2*5W Waterpoof Light manufacturers and

When wiring a non-maintained emergency lighting system, it is important to understand the different parts that make up the system. The main components are the emergency lighting unit, the power supply, the battery pack, and the wiring. The emergency lighting unit converts the power into light and can come in many different forms, such as LED.

Types Of Emergency Lighting Testing Systems Safecility

An emergency lighting wiring diagram is an essential tool for any facility responsible for keeping occupants safe in the case of a power outage. A wiring diagram for non-maintained emergency lighting ensures that the lighting system operates correctly during an emergency, providing occupants with the illumination they need to evacuate safely.

Emergency Light 3W LED Maintained Non Maintained

Non-maintained lights are typically found in the work place where artificial lighting is normally deployed whilst the premises are occupied. Non-maintained fittings are not part of the general lighting but are fittings such as emergency exit boxes. MAINTAINED EMERGENCY NON-MAINTAINED EMERGENCY Emergency module glows green in standby mode EXITBOXM1L

emergency light wiring diagram Wiring Diagram

With the right wiring diagram, you can make sure that your emergency lighting system is up and running in no time. Emergency Lights. Intelligent Controllers For Central Battery Systems Teknoware. Wiring Diagrams Cosine Developments. How To Install Emergency Lighting. Make A Plug In Emergency Light With Li Ion Battery Under Repository Circuits.

Wiring Diagram For Non Maintained Emergency Lighting

This step-by-step guide will help you understand the process and ensure a successful installation. Step 1: Determine the circuit layout and load requirements. Start by identifying the area or areas that require emergency lighting. Calculate the total load required for the emergency lights in these areas.

EPH Series 2 Sunny Emergency Light

Emergency lighting serves a critical purpose in providing illumination during power outages or emergencies.Maintained and non-maintained systems represent two distinct approaches to ensuring this essential lighting. Maintained emergency lights operate continuously as part of the regular lighting setup, ensuring consistent illumination at all times. . These lights serve a dual purpose by.

Dim And Bright Wiring Diagram

The basic process of how to wire emergency lights is as follows: Make the circuit safe for work to be carried out (as detailed above) Identify the voltage of the connection which will be made to the safety light fitting. Examine the unit connections. Connect the common wire and the right voltage wire for the connection voltage to the electrical.

Emergency Lighting Circuit Wiring Diagram

You should include a key operated test switch too, which may feed just one light, or all of them. The permenant live you pick up must be from the circuit which feeds the normal lighting in the area you have fitted the emergency light. The lighting in that area fails, the em lights in that area come on. Lectrician, Jul 15, 2012. #2.

Rmr Emergency Light Wiring Diagram My XXX Hot Girl

A short video explaining the difference between maintained, non-maintained and switchable maintained emergency lighting.

Wiring up/Testing of Emergency Lighting Emergency Lighting Safelincs Fire Safety Forum

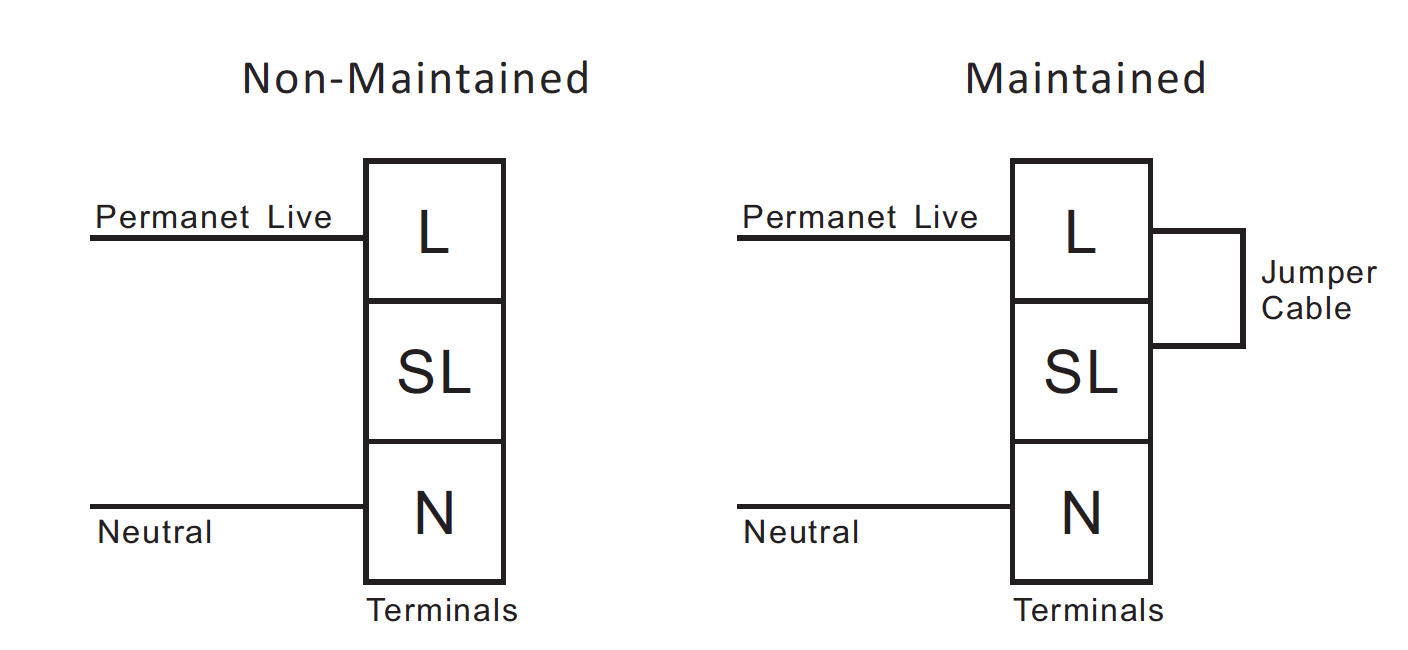

Terminal wiring diagram for a class I maintained emergency light fitting. Terminal wiring diagram for a class I non-maintained emergency light fitting. L SW is the normal mains supply. A normal light switch, or sensor, would usually be on this circuit to enable the end-user to have control over the light fitting in normal operating mode.

4v Rechargeable Emergency Light Circuit Diagram

These lights are wired differently than regular lights and require special wiring diagrams. The wiring diagrams for non maintained emergency lighting provide visual guidance on how to connect the necessary components and wires. They show the positive (+) and negative (-) terminals of the components, as well as the direction of power flow.

What are nonmaintained emergency light & Are they good? Sanforce

Non-maintained Emergency Lighting is an essential component to any property, ensuring that all occupants stay safe in an emergency situation. A wiring diagram for Non-Maintained Emergency Lighting provides an easy-to-follow visual representation of the installation process and connection of the wires, allowing a professional to quickly complete the task.
